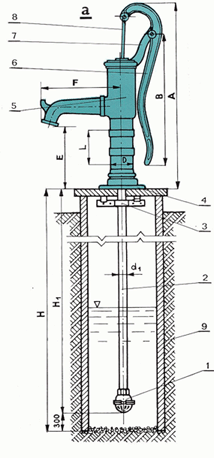

| 1. | Suction strainer |
| 2. | Suction piping |
| 3. | Fixing clamp with wedges |
| 4. | Plate of stand |
| 5. | Stand body with outlet |
| 6. | Balance beam |
| 7. | Pivoted cap |
| 8. | Tie-rod |
| 9. | Well |

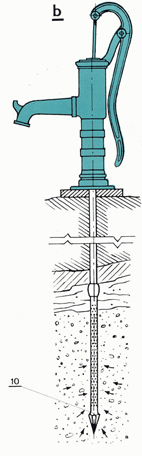

| 10. | Driving tip |
| D | Inside diameter of working cylinder (mm) | 75 | 90 |
| d1 | Inside diameter of suction piping (Inches) | 1 1/4" | 1 1/2" |
| L | Piston stroke(mm) | 160 | 160 |
| A | Height of pump (mm) | 674 | 743 |
| B | Length of lever to bolt (mm) | 520 | 580 |
| E | Height from plate to outlet (mm) | 237 | 250 |
| F | Length from outlet to centre of stand (mm) | 295 | 303 |
| H | Maximum depth of well (m) | 7 | 7 |
| H1 | Length of suction piping (m) | H-300mm | H-300mm |
